Excellent Image Quality

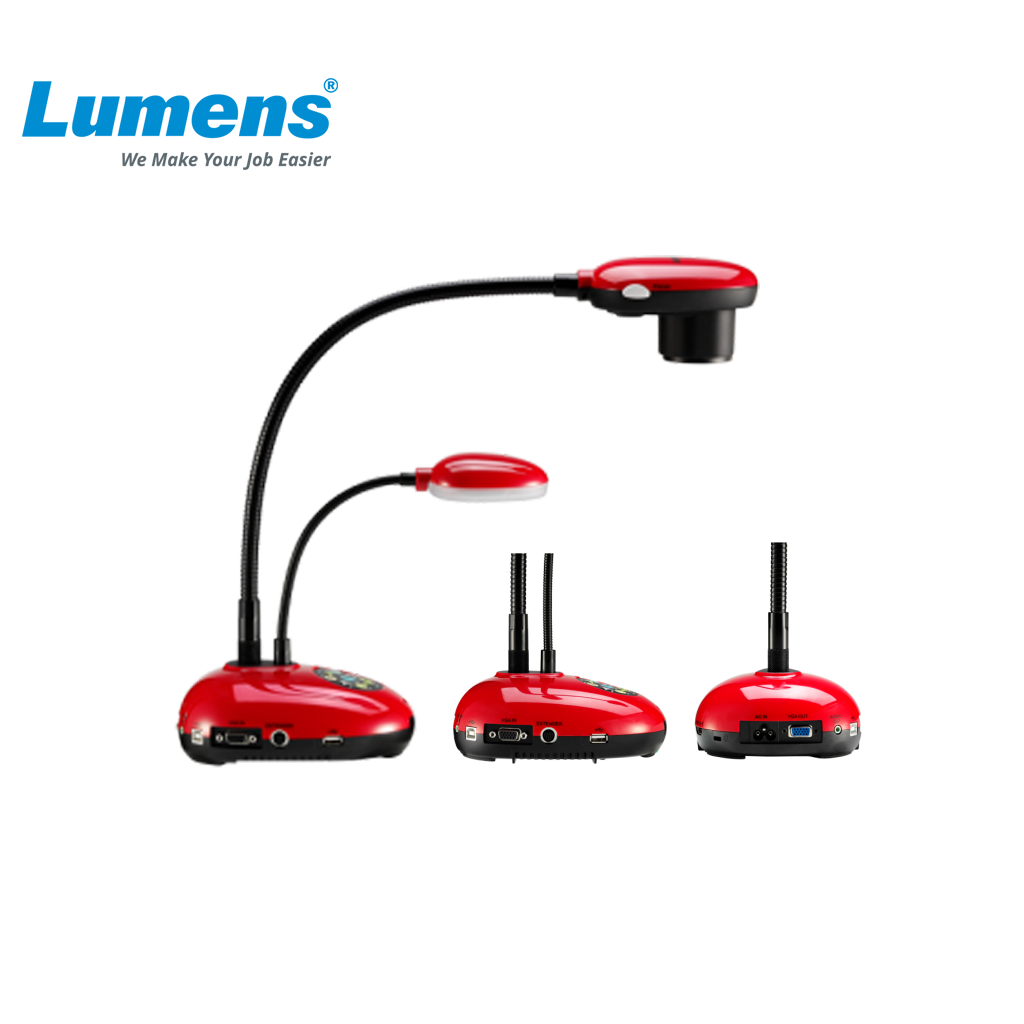

Lumens DC193 captures documents and 3D objects for live HD display on projectors and monitors. Featuring VGA and HDMI outputs, the visualizer supports resolutions up-to 1080 and produces sharp, vivid and bright images. With a built-in power adapter and onboard recording, DC193 can be used as a standalone document camera, without the need for a host computer or network connection.
The DC193's internal image store can be expanded using a USB flash drive up-to a maximum 4TB. Files stored locally can be played out to screens, or shared with colleagues for playback on any computer or smart device.
Standalone Creativity
Most document cameras require a PC for annotation and live graphic overlay. By connecting a USB mouse to the unit, users have access to a range of drawing, highlighting, and masking tools which will enhance any live presentation.
Computer Integration
Connect DC193 to a PC via USB to enjoy even greater creativity. Lumens Ladibug software for PC and Mac brings advanced annotation tools to desktop computers. Users can add text, spotlight and erase regions of an image, and much more. Connecting the camera to a computer by USB also turns DC193 into a webcam, recognized by all major video conferencing software, such as Teams, Zoom, and Webex. The high-quality camera and in-built microphone combine to deliver a truly versatile collaborative communication tool.
Picture Perfect
With an adjustable lamp and the camera mounted on a flexible gooseneck, users can capture the image they want, without distracting reflections or uneven lighting. Once the camera and light are perfectly positioned, the one-click Auto-Tune button quickly adjusts the clarity, brightness, and color to produce great-looking pictures without any user input.
1/3 CMOS Color Image Sensor
3.25MP
20x
12x
10x
0.78" (2cm)
14.6" x 11" (370mm x 280mm)
XGA, SXGA(1280x960), WXGA, 1080p
ΔE*ab (mean): 14.8
51dB
MTF 937 line
30fps
LED side lamp supported by gooseneck
Internal Power Supply, 100-240VAC
USB 2.0 (480 Mbps) high speed transmission
One touch button records image and sound synchronously
Yes
Single or continuous capturing
Yes, one button for optimization image
0 ̊, 180 ̊, flip, mirror
Kensington anti-theft lock device
Supports PC Windows 10, 8, 7, XP, Vista and Mac OSX, Chrome OS ; iOS, Android APP ; WIA & TWAIN interface
Power cable, VGA cable, USB cable, remote control, microscope adapter
