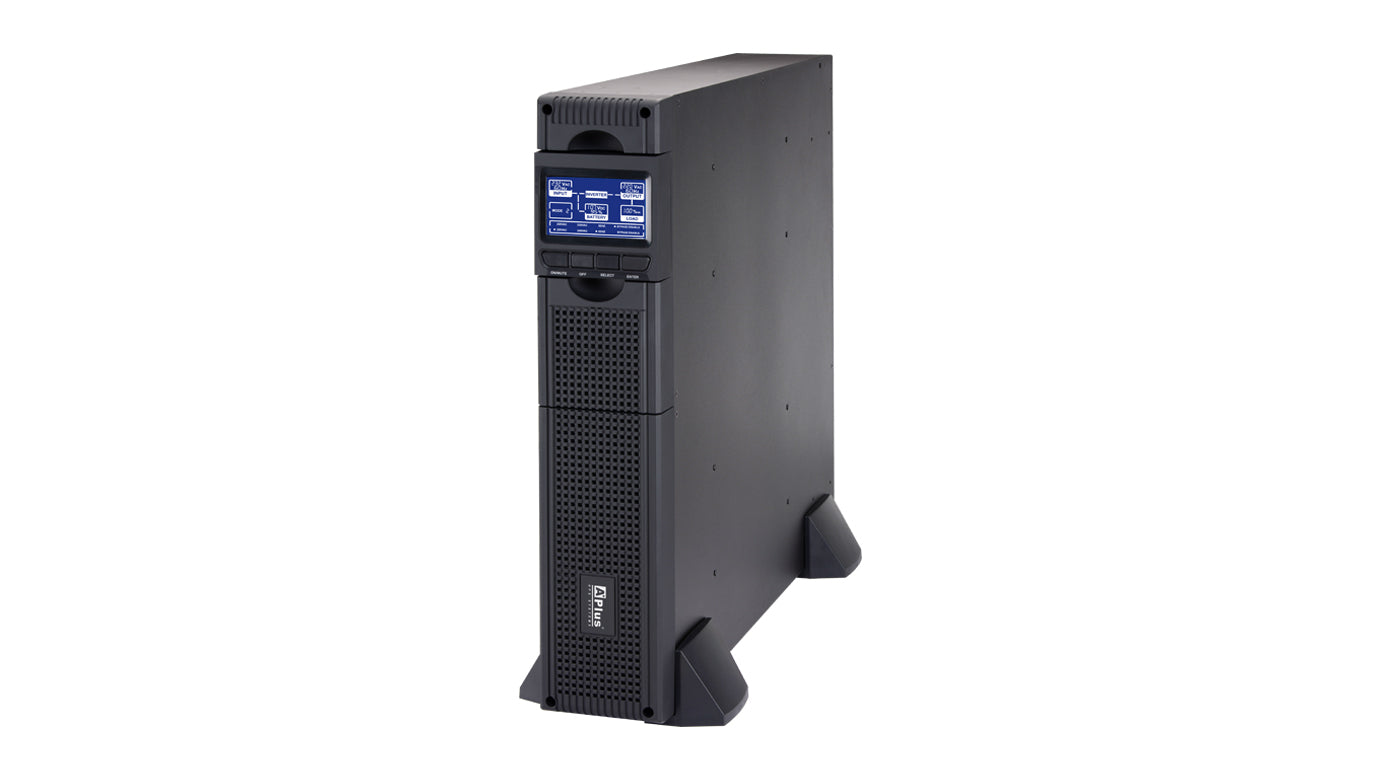

Aplus UPS PlusPRO2-1000UN Online UPS
Aplus UPS PlusPRO2-1000UN Online UPS
Aplus UPS PlusPRO2-1000UN Online UPS
Aplus UPS PlusPRO2-1000UN Online UPS
Aplus UPS PlusPRO2-1000UN Online UPS
Aplus UPS PlusPRO2-1000UN Online UPS

The PlusPRO 2 Series HV Rack/Tower 1000VA to 3000VA is a true double conversion online UPS with pure sinewave output and zero transfer time in a rack and tower convertible unit. Featuring 1000VA, 3000VA configuration with wide input range 110VAC to 300VAC, output power factor 0.9, LCD display, innovative Power Distribution Unit(PDU) and optional external battery bank, PlusPRO 2 Series HV Rack/Tower 1000VA to 3000VA model stand out as high efficient line of online UPS for mission critical equipment in data/computer center or industrial applications.

  • Features
  • Specifications
  • Brochure


●  High performance true double conversion On Line UPS 1000VA to 3000VA
●  Individual Power Distribution Unit (PDU) with maintenance bypass switch
●  Intelligent Slot (SNMP) + USB multiple communications
●  External battery bank to extend back-up time (Optional)
●  Microprocessor control guarantees high reliability
●  Low heat dissipation in long time operation
●  Emergency power-off function (EPO)
●  High efficiency mode (ECO mode)
●  Output voltage regulation <2%
●  Automatic self-testing function
●  Power management software
●  Output power factor 0.9
●  Fan speed control
●  Wide input range
●  DC start



MODEL PlusPRO 2-1000 PlusPRO 2-3000
CAPACITY 1KVA/0.9KW 3KVA/2.7KW
INPUT
Voltage 1 Phase 2 Wires with Ground 220/230/240Vac
Voltage Range 110Vac - 300Vac
Frequency 50Hz or 60Hz (Auto-sensing)
THDi <5% at full load
OUTPUT
Voltage 220/230/240Vac
Voltage Regulation +/-2%
Frequency (Battery Mode) 50Hz or 60Hz +/-0.2Hz
Waveform Pure Sinewave
THD <3% (linear load), <5% (non-linear load)
Crest Ratio 3 : 1
EFFICIENCY
To AC Mode >88%
To Battery Mode >85%
To ECO Mode >93%
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 36VDC 96VDC
Capacity & Number 12V/7AH*3pcs 12V/7AH*8pcs
Recharge Time 5 hours to 90%
TRANSFER TIME
Line Mode to Battery Mode 0ms
Inverter to Bypass, ECO Mode <4ms
ECO Mode to Inverter <10ms
DISPLAY
LCD Display Input, Output, Load, Battery, Mode/Fault/Warning code, Inverter operating, Bypass operating, Output voltage and frequency and Bypass disable/enable selection information
AUDIBLE ALARM
Battery Mode Beeps Every 4 Seconds
Low Battery Sounding Every  Second
Overload Sounding Twice Every  Second
Fault Beeping Continuously
COMMUNICATIONS
Interface (Port) USB Port
Intelligent Slot Yes, but SNMP card is optional
EPO Emergency Power Off
ENVIRONMENT
Operating Temperature 0°C-45°C
Humidity 20-90% (Non-condensing)
Acousitc Noise <50dB at 1M
PHYSICAL
Rack Height 2U 4U
Dimension (D*W*H) 480*440*90mm 480*440*180mm

*Product specifications are subject to change without further notice.
