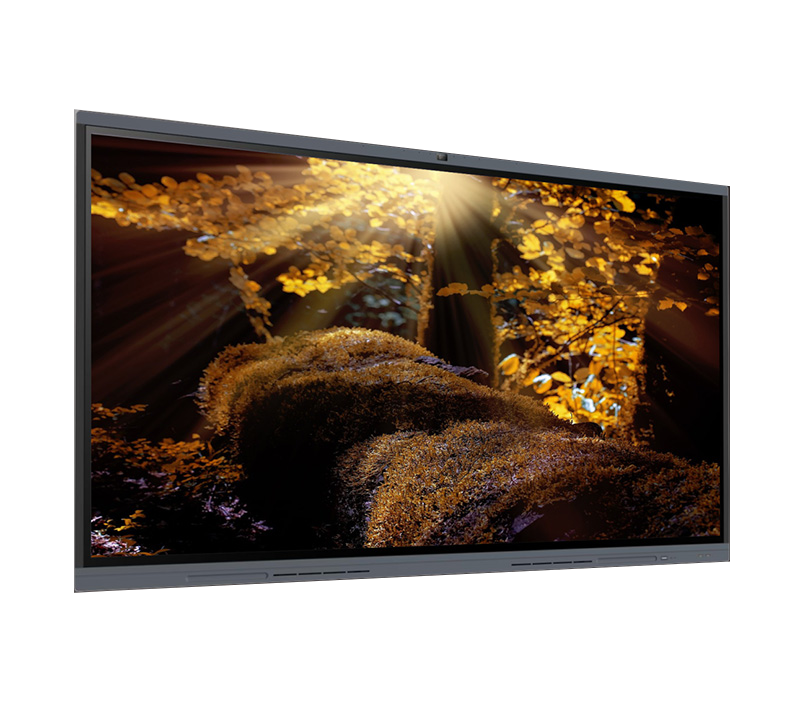

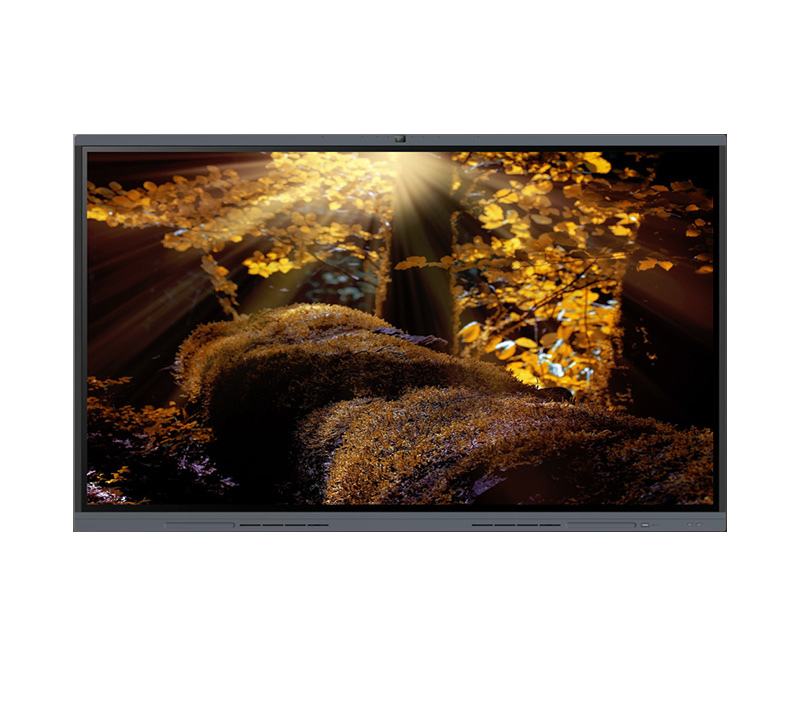

Boxlight ProColor 864UC

Touch technology and collaboration brought to life, with the brilliance of our ultra high-definition flat panel Android displays.
- Zero Bonding
- Tempered Glass: 9H, 3.2mm
- Germ-Resistant Pen
- Built-in 48M Camera and 8 array microphones

  • Features
  • Specifications
  • Brochure

Brilliant learning and collaboration—clear from the front row to the last

Students will see everything with Boxlight’s vibrant ProColor interactive flat panel display. Choose from the 55”, 65”, 75”, and 86” models, offering all the features of a touch-driven interactive whiteboard with the simplicity and elegance of a state-ofthe-art, ultra-high-definition (native 4K UHD) display.
  • Lessons have more contrast and are easier to see—even in large classrooms.
  • Up to 40 points touch users can work simultaneously with Touch 360° interactivity, driving collaborative learning.
  • 4K UI and Android channel for high-resolution viewing without a PC.
  • Teachers can use and save content directly from their Google Drive or Office Office 365 cloud storage systems.

Creating joyful learning and discussing environment

Equipped with 4K UHD resolution, Android OS installed, mirroring capabilities and finger touch function the ProColor 4 is really suitable to install in the classroom or meeting room to create joyful learning and discussing environment.

Enhanced focus (Concentration) and Eye protection

Exclusive Flicker-Free and unique Low Blue Light design could enhance students‘ attention and enhance eye protection. This design concept can prevent students’ eye from being irradiated by blue directly light and eliminate disruptions of our sleeping to obtain the best learning environment.

Built-in 16W dual loudspeakers

Built-in 20W dual loudspeakers, create the clear sound spreading the classroom and conferences space to bringing teachers, students or participants to enjoy the tender environment.

Split screen fuction

Equipped with the Split-screen function, it can display 2 different APPs on the screen together to can create a convenient scenario to show the two different information simultaneously in education learning and business discussion.

ScreenShare

Equipped with a mirroring APP and up to 9 units mirrored simultaneously, it can wirelessly mirror the terminal screens of teacher and students. Easy to use without installing an app on the user's devices.

Built-in Camera and Microphone

ProColor 864UC built-in a 48M camera and 8-array speakerphone, perfect for video conferencing and teaching. Enjoy crystal-clear visuals and high-fidelity audio, ensuring seamless interactions and clear communication in any setting.

Device Management System (Optional)

This optional function designed by a web browser-based system enables to control ProColor and mimio Smart Display in different classrooms with the central control system. For example, the central console can send the different commands to operate the all ProColor and mimio Display, such as powering on/off, sending text messages, images and videos, and installing applications. For the classroom of view it is really similar remote control system.
Display
Screen Size 86 inch
Brightness 400 nits
Contrass 4000:1
Viewing Angle 178° (H/V)
Back Light Unit DLED
Anti-Glare Glass Yes
Operating System
Operation System Android 11.0 / Android 13.0
CPU Quad-core A73 + Quad-core A53
GPU Mali G52MP8
RAM 8G
ROM 128G
Touch System
Sensing Type Infrared recognition
Touch Point 40 point touch (Single touch: Mac OS, Chrome)
System Windows 7/10/11, Mac OS, Android, Chrome
Camera
Pixel 48M
Position Built in the middle of the upper frame
Microphone
Quantity 8
Distance of a pickup 0~8m
I/O Connector
Input HDMI x3
USB 2.0 x1
USB 3.0 x4
USB Type C x1 (Front 65W)
Touch 2.0 x2
VGA In x1
Audio In x1
SPDIF x1
Output HDMI Out x1 (Optional)
Audio Out x1
General Spec
Speaker 2x16W + 20W
Power Requirement 100-240 VAC 60/50Hz
Power Consumption <0.5W (Standby mode)
WiFi Module Dual band 2.4Ghz/5GHz - 802.11 a/b/g/n/ac
PC Module OPS72A (Optional)
Dimension 1957(L)x1169(H)x86(D) mm
Weight 68.6 kg
