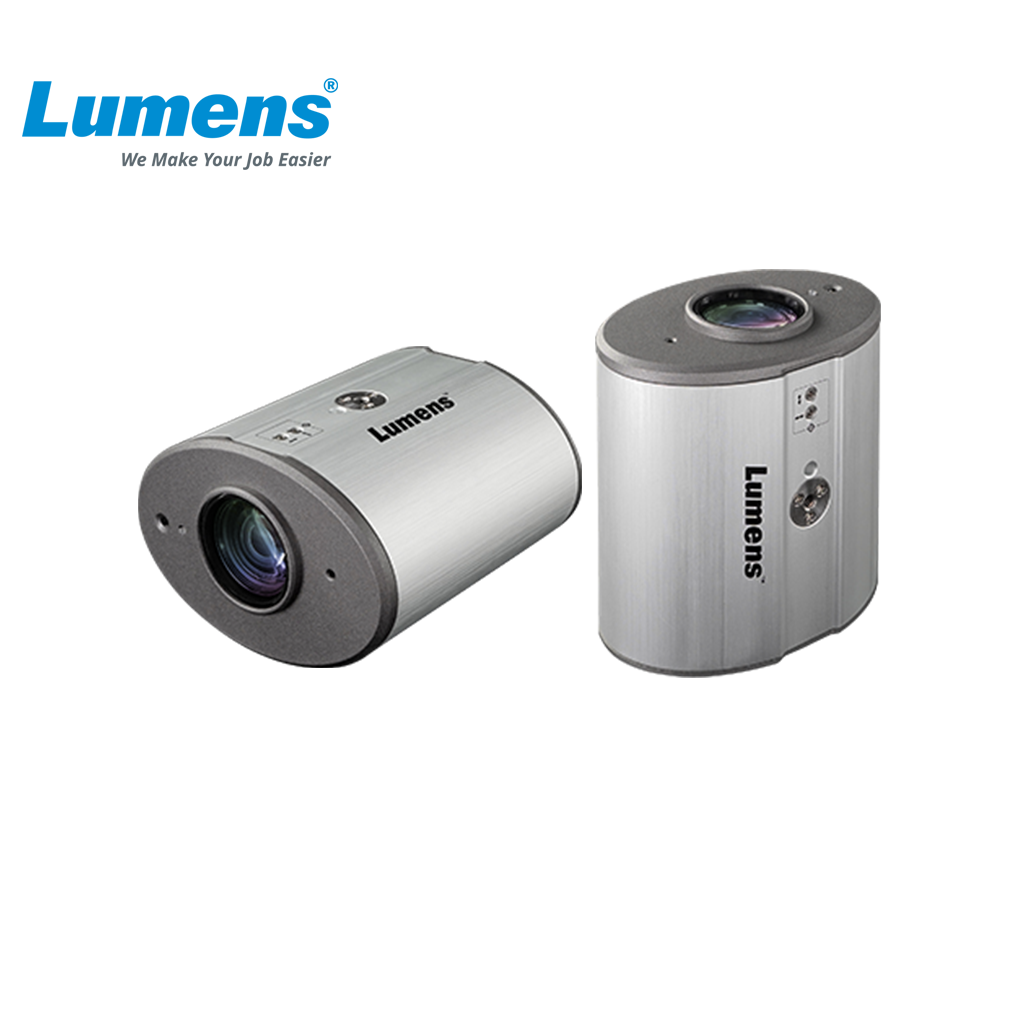

Lumens CL511 can be suspended from, or embedded into the ceiling. It provides presenters an unobstructed top view of a table top, podium, or demonstration area. The camera can shoot documents or objects larger than A0 size (over 88" x 48" / 2.2m x 1.2m) at up to 4K resolution.
Accurate Positioning
The CL511 can project mark the middle of the shooting area with a targeting laser, making it quick and easy to position objects accurately in the center of the frame. With 300x close-up capabilities, the camera is ready to capture the finest details.
Step-Up Onboard Collaboration
The CL511 supports a wireless mouse to access onboard collaboration tools for spotlighting a particular area. It also enables free drawing without a PC or any software. The addition of Lumens Ladibug program gives users access to advanced features such as text overlay, 4K recording, and use with a touch panel.
Fast & Easy Installation

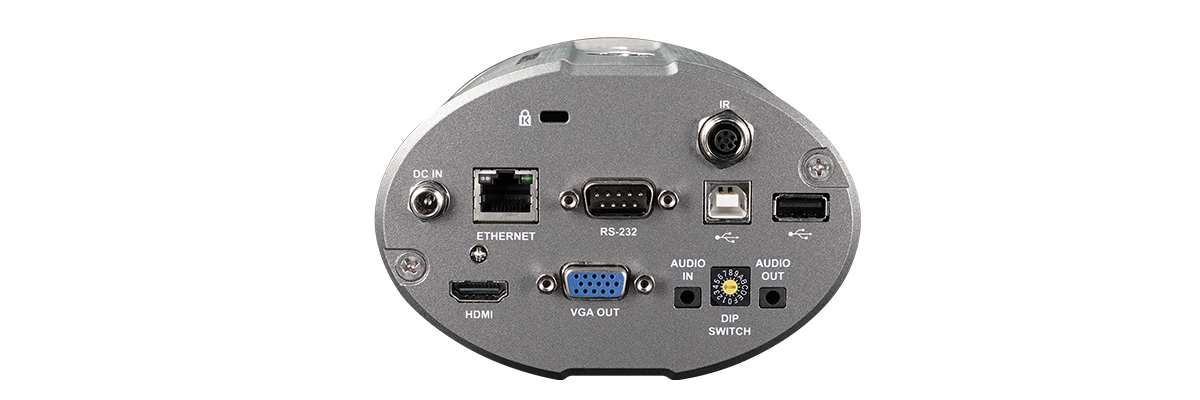

Featuring HDMI, USB, VGA, and Ethernet video outputs, users can output to video conferencing platforms, projectors and large format displays, and devices connected to the local network. The CL511 also supports Power over Ethernet (PoE+). Using a standard network cable, the visualizer can be operated without additional power supplies. These features significantly reduce installation time and costs.
1/2.8" 8.6MP CMOS
2160p: 30 / 25 1080p: 60 / 50 720p: 60 / 50 XGA
VGA / HDMI / USB / Ethernet
300x
60x
15x
MTF 1100 lines
Max: 2235 x 1211mm Min: 136 x 76mm
Yes
Automatically or Manually
0° / 90° / 180° / 270° / Flip / Mirror
2160p30 / 1080p60
1080p60
2160p30
H.264
H.264 2160p30 / MJPEG 1080p30
H.264 / MJPEG / YUV
Type-A x1 Supports USB 2.0 Flash Drive USB Mouse and Keyboard
Up to 4TB
Single or Continuous Capturing
100 JPEG images
H.264 1080p60
RTSP
PoE+ (IEEE802.3at)
Line In Phone Jack 3.5mm x1
Line Out Phone Jack 3.5mm x1
USB: PCM
RS-232 / Ethernet / USB
1.1
Kensington Lock
Ladibug Software (Supports Windows 10, 8, 7 Mac OS X, Chrome OS)
12V DC (100~240 VAC)
PoE: 13W DC In: 12W
1.76lbs (800g)
4.96" x 3.39" x 5.59" (126 x 86 x 142mm )
