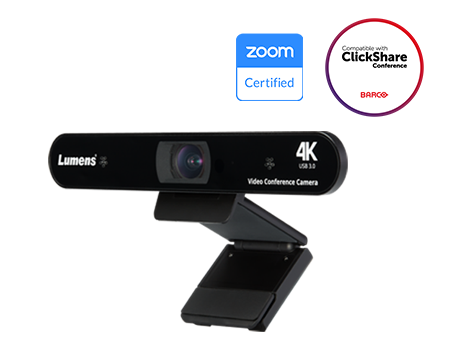

Lumens VC-B11U 4K USB Conference Camera

Auto-framing UltraHD webcam for huddle and meeting rooms

  • Zoom Certified USB camera
  • Clear images with 4K sensor and WDR
  • Effectively capture human voice up to 5 meters
  • Hands-free auto framing to keep all participants in view
  • Easily control the camera by a mini remote controller or software
  • Compatible with leading UC platforms and wireless presentation tools
  • 5 Year Warranty
  • Features
  • Specifications
  • Brochure

UC and VC Integration

Certified by Zoom and compliant with Barco ClickShare Conference, the VC-B11U is compliant with all major video conferencing applications and unified collaboration platforms. It can even be used as a live video source within live production and streaming tools such as YouTube Live, vMix, and OBS Broadcast.

VC-B11U 4K Video Conference Camera Lumens
VC-B11U 4K Video Conference Camera Lumens


Pro Quality

The Lumens VC-B11U is a professional grade USB camera designed for small to medium sized meeting rooms. Equipped with a 4K sensor, advanced image processing and reliable auto-focus, the camera outputs perfectly exposed video images enabling small groups to communicate effectively with remote teams. Featuring WDR (wide dynamic range) technology, the unit ensures that each participant is clearly visible on screen, even in difficult lighting conditions.

Auto-Configuration

The VC-B11U's auto-framing function immediately detects participants in a meeting. It dynamically adjusts its frame of angle to include all delegates, re-framing the view if participants join or leave during the meeting. There's no need for a remote controller to set the field of view – it's all automatically taken care of by the camera.

VC-B11U 4K Video Conference Camera Lumens
VC-B11U 4K Video Conference Camera Lumens

Sound

The camera's dual microphones are designed to pick up voices from up to 5 meters distance. This makes the VC-B11U suitable for sharing round table meetings or discussions in conference breakout rooms.

SPECS DETAILS

Sensor

1/2.8" 8.57MP CMOS

Video Format

3840x2160 30/25 fps
1920x1080 30/25 fps
1280x720 30/25 fps
640x360 30/25 fps


Video Output Interface

USB 3.0 Type C
(USB 2.0 Compatible)

Pixel Zoom

1080p: 2x / 720p: 3x

Digital Zoom

4x (MAX.)

Horizontal Viewing Angle

110˚

Vertical Viewing Angle

74˚

Diagonal Viewing Angle

120˚

PTZ

ePTZ

Auto Framing

Yes (1080p and below)

Auto Framing Maximum Distance

5 Meters

Aperture

F 2.2

Focal Length

f=2.1mm

Shutter Speed

1/30 ~ 1/10,000 sec

Minimum Object Distance

500 mm

Video S/N Ratio

> 50dB

Minimum Illumination

10 lux

Gain Control

Auto / Manual

White Balance

Auto / Manual / One push

Brightness Control

Yes

Exposure Control

Auto / Manual / Shutter Pri

WDR

Yes

2D NR

Yes

3D NR

Yes

Image Flip

Mirror / Flip

Preset Positions

64

Control Interface

USB

Control Protocol

UVC / UAC

Video Compression

YUY2 / MJPEG / NV12

Built-in Mic

2 Omni-directional Mics

Mic Effective Distance

5 Meters

IR Receiver

Yes

IR Remote Control

Yes

Power Consumption

<4.5W (5V @0.9A)

Mounting

Tripod-Ready Universal Clip

Weight

1.1 lbs (0.5kg)

Dimensions

Without Clip:
1.2”x 8.3”x 1.4”(30 x 210 x 35 mm)
With Clip:
1.9”x 8.3”x 2.9”(47.4 x 210 x 73.6 mm )
